This chapter provides the information you need before setting up a Digital UNIX RIS server. The topics include:
When installing Digital UNIX Version 4.0 or higher into a RIS environment and the RIS server is running a previous version of the operating system, you must perform the following procedure as superuser on the server:
mount
command similar to the following:
#
mount -rd /dev/rz4c /mnt
This example uses a CD-ROM drive that is unit 4
and specifies
/mnt
as the mount point; if your drive is a
different unit, substitute the device special file name for that unit.
If you are uncertain of your CD-ROM's unit number,
enter the
file
command, specifying the raw device, as follows:
#
file /dev/rrz*c
/dev/rrz1c: char special (8/1026) SCSI #0 RZ25 disk #8 (SCSI ID #1) /dev/rrz2c: char special (8/2050) SCSI #0 RZ25 disk #16 (SCSI ID #2) /dev/rrz3c: char special (8/3074) SCSI #0 RZ25 disk #24 (SCSI ID #3) /dev/rrz4c: char special (8/4098) SCSI #0 RRD43 disk #32 (SCSI ID #4) /dev/rrz9c: char special (8/17410) SCSI #1 RZ57 disk #72 (SCSI ID #1)
The CD-ROM device corresponds to an RRD device, in this example RRD43.
/mnt
enter the following:
#
/mnt/isl/utilupdate -r -m /mnt
In the above example the
-r
copies the new RIS utility from the distribution CD to the server in
/usr/sbin.
The
-m <directory>
is the mount point of the distribution media. In this example it is
/mnt.
This is a required parameter.
The command copies the existing files in
/usr/sbin
to files with a
*.pre-V4.0
suffix, for example:
/usr/sbin/setld
is copied to
/usr/sbin/setld.pre-V4.0.
When the script completes, the server can serve a Digital UNIX Version 4.0 or higher RIS client.
If the utility finds existing
*.pre-V4.0
Digital UNIX
files on your system, the existing utilities are updated with
no changes to the
*.pre-V4.0
files. If the server
is already running Version 4.0 or higher, a confirmation
is displayed and no copies will be made.
Support of differing bootstrap protocols restricts the use of the Digital UNIX and ULTRIX operating systems together in RIS environments.
Alpha-based clients can broadcast
bootp
requests. VAX-based or MIPS-based clients broadcast only
Maintenance Operation Protocol (MOP) requests, which means
they cannot boot from
Digital UNIX
servers.
After a client's
operating system is installed and running, a server running
Digital UNIX
software
can serve additional product subsets to a client running
either an ULTRIX or a
Digital UNIX
operating system. The client loads the additional subsets
by using the
setld
utility.

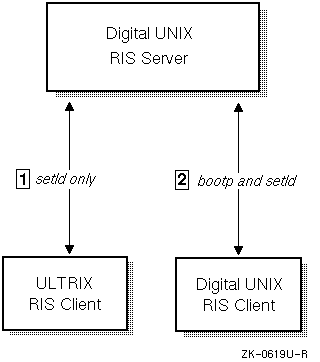

Figure 3-1 shows these relationships:
setld
utility.
bootp
protocol. This means that a
Digital UNIX
server can serve both the
Digital UNIX
base operating system
as well as additional product subsets to the
Digital UNIX
client over the network.
The
Digital UNIX
client loads additional product subsets by using the
setld
utility.
If a server is using
ris
with C2-Security enabled, the
ris
user file must be changed to ensure that the
ris
password does not expire. If the password expires,
client access is denied. Perform the following steps
on the server to modify the
ris
user file:
/tcr/files/auth/r/ris
u_pwd
to * (an asterisk).
u_succhg
value to non-zero. This value is a
time_t
type printed with
%ld.
u_life
and
u_exp
fields to zero.
The following is an example of the modified user file
/tcb/files/auth/r/ris:
ris:u_name=ris:u_id#11:u_oldcrypt#0:u_pwd=*:u_exp#0:u_life#0: u_succhg#79598399:u_suclog#79598399:u_lock@:chkent:
When these changes are made, the RIS password should never expire causing a denial of service to clients.
Before you configure and install the RIS area and software on the server, you must perform the following tasks:
The Installation Guide describes how to install the Digital UNIX operating system on the server. It also lists all of the standard Digital UNIX supported software subsets with subset names, sizes, and descriptions of their contents. You will need this information to install the operating system, as well as to install RIS software.
Because RIS areas are created in
/var/adm/ris,
you may want to specify a separate
/var
file system during the installation to get extra disk space.
To specify a separate file system for
/var,
you must perform a custom installation (not a default
installation).
To be a RIS server, a system must have
the
Remote Installation Service
and
Additional Networking Services
subsets installed. These subsets contain the
tftp
networking utility and the
bootpd
or
joind
bootstrap daemon.
Enter the following command to see if these subsets are installed:
#
/usr/sbin/setld -i | egrep "RIS|INET"
Information similar to the following should be displayed:
OSFCLINET400 installed Basic Networking Services OSFINET400 installed Additional Networking Services OSFRIS400 installed Remote Installation Service
The
Basic Networking Services
subset is mandatory and is installed automatically.
If the
Additional Networking Services
and
Remote Installation Service
subsets are not installed,
you must install them by using the
setld
utility.
See the
Installation Guide
for more information about using the
setld
utility to install subsets.
You must connect the RIS server and all of the client processors
to a LAN using either Ethernet, FDDI, or Token Ring.
The server and clients must all be on the same
network or subnetwork unless
the router connecting the networks or subnetworks
can forward
bootp
requests.
For instructions on setting up a local area network, refer to the Network Administration guide.
The
Digital UNIX
Server Extensions license (OSF-SVRor UNIX-SERVER) provides the right
to use the RIS software on
Digital UNIX
systems. A
product authorization key (PAK) accompanies the license.
You must register
the PAK information for your system before it can be configured
as a RIS server.
Register the PAK information by using the
License Manager application. Refer to
dxlicense(8)
for additional information.
See the Software License Management guide and the License Manager online help page for more information about registering license PAKs.
After you enter the data, complete the server setup tasks described in Chapter 4.
The
Digital UNIX
distribution kit contains CD-ROM
media. The device special file name for a CD-ROM reader is
/dev/rznc,
where the character
n
represents the unit number.
Before beginning an installation you must calculate the amount of disk storage required for the software subsets in the RIS areas on the server. If space on the server's system disk is an issue and your server's distribution media is a CD-ROM, you might want to create symbolic links from the RIS server area to the software on the CD-ROM. Section 4.1 briefly describes the advantages and disadvantages of establishing symbolic links instead of extracting the software subsets into the RIS server area.
See Chapter 1 for a description of the RIS area's contents. A given server can have multiple RIS areas, in which some of the subsets can be duplicated. To organize your RIS server's disk space, perform the following steps:
