4    Preparing to Set Up Highly Available Services

This chapter describes the preparation required to set up the services in an available server environment (ASE) within your TruCluster configuration. Later chapters describe how to set up and manage specific types of ASE services.

Specifically, this chapter discusses the following topics:

This chapter also lists the steps you follow to ensure that you have performed all the necessary service preparation tasks.

After you perform the preparatory tasks, you can use the asemgr utility to add the service to the ASE. After you specify the necessary service information, the TruCluster software updates the ASE database, propagates the database changes to all members of the ASE, and adds the service to all the members. The TruCluster software then chooses a member to run the service and starts the service on that member.

[Contents] [Prev. Chapter] [Next Section] [Next Chapter] [Index] [Help]

4.1    Preparing to Add a Service

Before you add a service, you must plan on how you want to set up the service and perform some preparatory tasks. Not all services require that you perform all the tasks. For example, some services consist of only a disk configuration or only an application.

To ensure that you are ready to use the asemgr utility to set up a service, follow these steps:

  1. Prepare the disk configuration for the service. Depending on the service, you may have to install and set up specific software, such as UNIX File Service (UFS), Network File System (NFS), Advanced File System (AdvFS), or Logical Storage Manager (LSM) on all the member systems. If you want to use disk quotas, you must set up the quota files.

  2. Install the application that you want the service to fail over to. Any application that you use in the service must be installed on all the member systems.

  3. Create the action scripts that ASE will use to fail over the application. At a minimum, you must create start and stop action scripts for the service.

  4. Determine if you want to restrict the service so that it runs only on specific member systems. A service's Automatic Service Placement (ASP) policy determines which members can run the service.

After you perform the previous tasks, use the asemgr utility to add the service to the ASE. The following sections describe ASP policies, how to prepare a disk configuration, and how to use action scripts. The following chapters describe how to add a specific type of service.

[Contents] [Prev. Chapter] [Prev. Section] [Next Section] [Next Chapter] [Index] [Help]

4.2    Understanding ASP

The Automatic Service Placement (ASP) policy for a service determines which member systems are allowed to run the service. You must choose an ASP policy for each service. The asemgr utility prompts you for the ASP policy when you add a service.

Whenever the TruCluster software automatically starts a service (for example, when a service relocates because of a member system failure), it chooses a member system to run the service. The member system it chooses depends on the service's ASP policy and which member systems are available.

Note

You can manually relocate a service by using the asemgr utility to override the ASP policy.

You can use a service's ASP policy to specify a master/standby configuration, where one member runs all the applications and the other member is used only if the master system fails. You can also specify that any member system can run the service. This ASP policy ensures that the services are distributed equally among the members.

When you add a service, the asemgr utility prompts you for the service's ASP policy. There are three ASP policies:

After you choose one of the previous ASP policies, you must specify if you want the TruCluster software to relocate a service to a more highly favored member if it becomes available. For example, if the most highly favored member fails, its services relocate to another member. If the most highly favored member system becomes available again, depending on the option you choose, the TruCluster software can either relocate the service back to the original member system or keep the service running on the current member.

Also, if you specify only one favored member, you must indicate if you want the TruCluster software to change the one favored member to the member that is specified when you manually relocate the service. If you choose this option and manually relocate the service, the member to which you relocated the service is now the only favored member for the service. For example, if you specify that a service can run only on member1 and you manually relocate the service to member2, the TruCluster software can make member2 the only member on which the service can run.

Example 4-1 shows how to select the Favor Members ASP policy and specify two favored members.

Example 4-1:  Selecting the Favor Members ASP Policy

        Selecting an Automatic Service Placement (ASP) Policy

Select the policy you want ASE to use when choosing a member
to run this service:

    b)  Balanced Service Distribution
    f)  Favor Members
    r)  Restrict to Favored Members

    x)  Exit to Service Configuration      ?)  Help

Enter your choice [b]: f

        Selecting an Automatic Service Placement (ASP) Policy

Select the favored member(s) IN ORDER for service 'disk1':

    1)  gideon
    2)  toto
    3)  nobrain

    x)  No favored members               ?)  Help

Enter a comma-separated list [x]: 2,1

        Selecting an Automatic Service Placement (ASP) Policy

Do you want the ASE to relocate this service to a more highly
favored member if one becomes available while the service
is running (y/n/?): y

[Contents] [Prev. Chapter] [Prev. Section] [Next Section] [Next Chapter] [Index] [Help]

4.3    Using Disks in ASE Services

If you are setting up a distributed raw disk (DRD), Network File System (NFS), disk, or tape service, you must install and set up the disk configuration that will be used in the service. Note that user-defined services do not utilize disks. In general, you set up the disk configuration in the same way as in an environment other than an ASE.

However, once the disk is used in an ASE service, it must be managed within the ASE. The ASE must control the disk if a service is running. For example, do not manually unmount a file system that is being used by an online ASE service.

The following sections contain general information about using disks in the ASE, in addition to information about using the UNIX File System (UFS), NFS, and the Logical Storage Manager (LSM).

[Contents] [Prev. Chapter] [Prev. Section] [Next Section] [Next Chapter] [Index] [Help]

4.3.1    General Disk Requirements

The following requirements apply to all disk configurations:

The following sections describe how to control access to disks and how to use UFS, AdvFS, and LSM in your services.

[Contents] [Prev. Chapter] [Prev. Section] [Next Section] [Next Chapter] [Index] [Help]

4.3.2    Controlling Access to Disks

You must be able to control the processes that access the disks used in your services. This is because the TruCluster software must be able to stop a service in order to relocate a service, place a service off line, or modify a service. If the TruCluster software is unable to stop a service, ASE operation may be impaired.

Notes

If a service fails to stop, the asemgr utility prompts you with a number of choices, so you can fix the problem. See Chapter 10 for more information.

If, while attempting to fail over a service, an ASE member cannot stop the service, the member will reboot itself. The rebooting sequence allows another member to provide the service. In addition, it often corrects the situation that prevented the member that originally owned the service from stopping the service.

If the TruCluster software cannot stop a service that uses mounted disks, you may see the following error message in the daemon.log file:

device busy

This message indicates that the TruCluster software could not unmount a disk, possibly because it could not stop all the processes accessing the disk.

The TruCluster software cannot stop a service that uses mounted file systems, filesets, or volumes unless it can unmount them. The TruCluster software may not be able to unmount a disk in the following situations:

You must ensure that only processes started and stopped by the service's action scripts can access the disks used in a service. Make sure that all the processes invoked by the start action script are stopped by the stop action script. The actions in the start script must be reversed by the actions in the stop script.

If you want to allow users to access the mounted disks, use an NFS service and allow users to access only the directory that is exported, not the directory that is mounted locally.

To enable access through NFS, create an entry in each member system's /etc/fstab file and specify the service name as the remote host from which to NFS-mount the file system. You must also specify the exported file system path.

If you must allow access to the local mount point, ensure that the service's stop action script is able to stop these processes.

[Contents] [Prev. Chapter] [Prev. Section] [Next Section] [Next Chapter] [Index] [Help]

4.3.3    Using Disk Quotas

You can enable disk quotas on file systems or filesets that are used in an ASE service. Quotas allow you to limit the number of blocks and inodes (or files) that a user or a group of users can allocate. You can set a separate quota for each user or group of users on each file system. See the DIGITAL UNIX System Administration manual for detailed information about UFS and AdvFS disk quotas.

To use disk quotas in an ASE, you must mount the /proc file system on each member system. Add the /proc file system to the /etc/fstab file as follows:

/proc     /proc   procfs rw

When you add a service that uses disk quotas, the TruCluster software creates a /var/ase/config/fstabs/service_name file on each member system. The file contains records that describe each mount point used by the service. The records use the format of the /etc/fstab file.

When a service is started on a member, the TruCluster software creates a link to the /var/ase/config/fstabs/service_name file in the /var/ase/config/fstabs.running directory. The TruCluster software removes the link when it stops the service. Therefore, only one member system has a pointer to the file at any time.

There are two methods you can use to set up disk quotas on a UNIX file system in the ASE:

If you use the mkfset command to create an AdvFS fileset, the command automatically sets up quota files in the root of the fileset. You cannot specify another location. To set up quotas on an AdvFS fileset in the ASE, use the asemgr utility to specify the fileset and, when prompted for quota files, specify the quota.user or quota.group file. After you add the service, you must use the vedquota command to specify the quota limits in the files.

Place the quota files on a file system used in the service, so the files are relocated with the service. For AdvFS, you must locate the quota files on the fileset. If you are using UFS and want to specify another location, you must manage the quota files separately on each system. Do not locate quota files on a file system that is used by another service.

To display the mount options for a file system or fileset, including whether quotas are enabled, use the asemgr utility to display service status.

To change the quota files or disable quotas for a file system or fileset, modify the service and select the file system or fileset. Then, choose to modify the quota options. To disable quotas, specify none when prompted for the quota files.

[Contents] [Prev. Chapter] [Prev. Section] [Next Section] [Next Chapter] [Index] [Help]

4.3.4    Backing Up Disks

There are three methods to back up a disk that is used in an ASE service:

[Contents] [Prev. Chapter] [Prev. Section] [Next Section] [Next Chapter] [Index] [Help]

4.3.5    Using UFS

To use the UNIX File System (UFS) in the ASE, you first set up the disks as you would for any UFS before you add the service. That is, you must use the disklabel command to partition a disk and the newfs command to create a file system on a partition. See the DIGITAL UNIX System Administration manual for information about setting up UFS.

When you use the asemgr utility to add an NFS, disk, or tape service that uses UFS, you are prompted for the following information:

Example 4-2 shows how to specify a UFS when setting up a disk service.

Example 4-2:  Specifying a UFS in a Disk Service

                     Specifying Disk Information

Enter one or more device special files, AdvFS filesets, or LSM
volumes to define the disk storage for this service.

    For example:    Device special file:     /dev/rz3c
                    AdvFS fileset:           domain1#set1
                    LSM volume:              /dev/vol/dg1/vol01

To end the list, press the Return key at the prompt.

Enter a device special file, an AdvFS fileset, or an LSM volume as
storage for this service (press 'Return' to end): :/dev/rz20c

                  Mount Point

The mount point is the directory on which to mount `/dev/rz20c`.
If you do not want it mounted, enter "NONE."

Enter the mount point or NONE: /usr/dbase


              UFS File System Read-Write Access

Mount `/dev/rz20c` file system with read-write or read-only access?

    1)  Read-write
    2)  Read-only

Enter your choice [1]: 1

You may enable user and group quotas on this file system by specifying
names for the quota files.  If you accept the default quota file names,
the quota assignments you make with edquota will relocate with the file
system.  Enter "none" to disable quotas.

User quota file [/dbase/quota.user]: [Return]

Group quota file [/dbase/quota.group]: [Return]
              UFS Mount Options Modification

Enter a comma-separated list of any mount options you want to use
for `/dev/rz20c` (in addition to the UFS-specific defaults listed
in the mount.8 reference page).  If none are specified, only the
default mount options are used.

Enter options (Return for none): [Return]

[Contents] [Prev. Chapter] [Prev. Section] [Next Section] [Next Chapter] [Index] [Help]

4.3.6    Using AdvFS

You can use the Advanced File System (AdvFS) in an NFS service or a disk service. AdvFS provides you with fast file system recovery. If you want to use AdvFS, it is important that you read the following documentation:

To use AdvFS in an ASE, you first set up AdvFS in the same way that you would in an environment other than ASE before you add a service. You must set up the volumes, domains, and filesets that you will use in the service. Do this on the same member system on which you will run the asemgr utility to add the service to the ASE.

The following example shows how to create a domain named dom1 on the volume /dev/rz10c, and then create a fileset named set1 on dom1:

# mkfdmn /dev/rz10c dom1

# mkfset dom1 set1

The following sections describe the AdvFS requirements and how to specify AdvFS information with the asemgr utility.

[Contents] [Prev. Chapter] [Prev. Section] [Next Section] [Next Chapter] [Index] [Help]

4.3.6.1    AdvFS Requirements

AdvFS has the following requirements:

[Contents] [Prev. Chapter] [Prev. Section] [Next Section] [Next Chapter] [Index] [Help]

4.3.6.2    Specifying AdvFS Filesets in a Service

If you use AdvFS in a service, you are prompted for the following information when you add the service:

When you specify a fileset, the asemgr utility displays the disk partitions and any LSM volumes that comprise the fileset.

Example 4-3 shows how to specify an AdvFS fileset that uses an LSM volume.

Example 4-3:  Specifying AdvFS Filesets in an NFS Service

                 Specifying Disk Information

Enter one or more device special files, AdvFS filesets, or LSM
volumes to define the disk storage for this service.

For example:        Device special file:      /dev/rz3c
                    AdvFS fileset:            domain1#set1
                    LSM volume:               /dev/vol/dg1/vol01

To end the list, press the Return key at the prompt.

Enter a device special file, an AdvFS fileset, or an LSM volume as
storage for this service (press 'Return' to end): dom1#set1

ADVFS domain `dom1` has the following volume(s):

     /dev/vol/dg3/vol01

Is this correct (y/n) [y]: y

Following is a list of device(s) and pubpath(s) for disk group dg3:

        DEVICE  PUBPATH

        rz32c   /dev/rz32c

Is this correct (y/n) [y]: y

Enter the directory pathname(s) to be NFS exported from the storage
area "dom1#set1".  Press 'Return' when done.

Enter a directory pathname: /usr/staff

  Enter a host name, NIS netgroup, or IP address for the NFS
  exports list (press 'Return' for all hosts): staff_group

Enter a directory pathname:[Return]


              AdvFS Fileset Read-Write Access

Mount `dom1#set1` fileset with read-write or read-only access?

    1)  Read-write
    2)  Read-only

Enter your choice [1]: 1

You may enable user and group quotas on this file system by specifying
names for the quota files.  If you accept the default quota file names,
the quota assignments you make with edquota will relocate with the file
system.  Enter "none" to disable quotas.

User quota file [/var/ase/mnt/ase4/usr/staff/quota.user]:
[Return]

Group quota file [/var/ase/mnt/ase4/usr/staff/quota.group]:
[Return]
              AdvFS Mount Options Modification

Enter a comma-separated list of any mount options you want to use for
the `dom1#set1` fileset (in addition to the defaults listed in the
mount.8 reference page).  If none are given, only the default mount
options are used.

Enter options (Return for none): bg

See Section 10.6 for information about modifying services that use AdvFS.

[Contents] [Prev. Chapter] [Prev. Section] [Next Section] [Next Chapter] [Index] [Help]

4.3.7    Using LSM

You can use Logical Storage Manager (LSM) volumes in an NFS, disk, or tape service. LSM provides high data availability for disk storage devices. It protects against data loss, improves disk I/O performance, and allows you to perform disk management functions without disrupting access to disks. If you want to use LSM volumes in an ASE service it is important that you read the DIGITAL UNIX Logical Storage Manager manual.

To use LSM, make sure that the LSM software is installed and initialized before you add the service. You must set up a rootdg disk group on each member system, set up the disk groups, and configure the LSM volumes that you will use in the ASE services. You can specify an LSM volume in a service, or you can create a UNIX file system or an AdvFS domain and fileset on top of an LSM volume, and use the file system or fileset in a service.

Note

You must set up a service's LSM disk groups and volumes on the same member on which you will run the asemgr utility to set up the service.

If you delete a service that uses LSM, the asemgr utility prompts you for a member on which to keep the service's storage configuration. The disk groups will remain imported only on that system.

To set up LSM disk groups and volumes for a service, follow these steps:

  1. Ensure that each member system has a rootdg disk group set up on local (nonshared) disks. Configure the rootdg disk group on more than one disk. This ensures that if one disk fails, the disk group is still available.

  2. On one member, initialize the disks to be used in each disk group.

  3. Create the disk groups for the service and add the initialized disks to it. Note that a service can use more than one disk group, but a disk group can be used only in one service.

  4. Create the volumes for the disk groups.

  5. Optionally, create UNIX file systems or AdvFS domains and filesets on the volumes.

  6. Run the asemgr utility and add the service.

The following sections describe the LSM requirements and how to set up a new LSM disk configuration for an ASE service. However, you may also want to use a configuration that was used in a previous service or for some purpose other than ASE. See Section 4.3.7.5 for information about using an existing LSM configuration.

[Contents] [Prev. Chapter] [Prev. Section] [Next Section] [Next Chapter] [Index] [Help]

4.3.7.1    LSM Requirements

LSM has the following requirements:

[Contents] [Prev. Chapter] [Prev. Section] [Next Section] [Next Chapter] [Index] [Help]

4.3.7.2    Initializing LSM

To use LSM in your ASE services, you must set up LSM and create a separate rootdg disk group on each member systems before adding services. See the DIGITAL UNIX Logical Storage Manager manual for information about using individual commands to customize the rootdg disk group initialization.

Use the volsetup command to create the rootdg disk group. When you create the rootdg disk group on each member system, you must specify disks only on the system's local SCSI bus. Do not specify disks that are on the ASE shared bus.

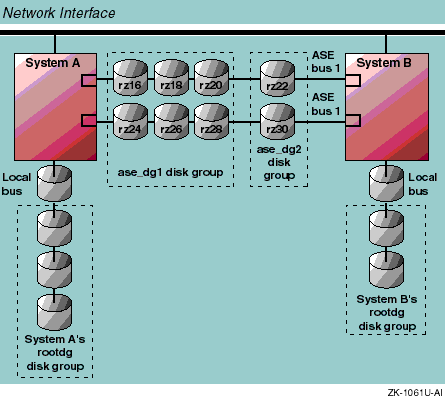

See Figure 4-1 for an example of an LSM disk configuration that uses two disk groups, ase_dg1 and ase_dg2, on two shared buses.

Figure 4-1:  Logical Storage Manager Disk Configuration

[Contents] [Prev. Chapter] [Prev. Section] [Next Section] [Next Chapter] [Index] [Help]

4.3.7.3    Configuring LSM Disks and Disk Groups for the ASE

You must initialize the LSM disks and include them in disk groups that are set up specifically for ASE. The DIGITAL UNIX Logical Storage Manager manual describes how to determine the private region size and parameters for a disk group, how to initialize disks for LSM, and how to set up and add disks to disk groups. Figure 4-1 shows that disks on the two ASE shared buses are included in two shared disk groups, ase_dg1 and ase_dg2.

The voldisksetup utility sets up a disk for LSM use by modifying the disk label and initializing the private region. The voldg command adds an initialized disk to a disk group. You can also use the voldiskadd utility to initialize disks and add them to a disk group.

For each disk group, the number of copies and the size of the LSM configuration database must be configured to provide the best failover performance. However, you also must ensure that enough copies of the configuration database are available.

By default, the voldisksetup utility sets up LSM disks with a private region size of 512 sectors, two copies of the configuration database, and two copies of the log regions. It is recommended that you set up four to eight copies of the LSM configuration database for each disk group used in the ASE. For higher database availability, place the copies on different SCSI buses, disk storage boxes, or RAID controllers.

Example 4-4 and Example 4-5 create the LSM configuration shown in Figure 4-1. Example 4-4 shows how to use the voldisksetup -i command to initialize six entire disks with four copies of the configuration database and four copies of the log regions distributed among the disks. Example 4-4 also shows how to use the voldg command to create the ase_dg1 disk group and add the initialized disks to the disk group.

Example 4-4:  Initializing LSM Disks and Disk Groups

# voldisksetup -i rz16 nconfig=1 nlog=1

# voldisksetup -i rz18 nconfig=1 nlog=1

# voldisksetup -i rz20 nconfig=0 nlog=0

# voldisksetup -i rz24 nconfig=0 nlog=0

# voldisksetup -i rz26 nconfig=1 nlog=1

# voldisksetup -i rz28 nconfig=1 nlog=1

# voldg init ase_dg1 ase_16=rz16

# voldg -g ase_dg1 adddisk ase_18=rz18

# voldg -g ase_dg1 adddisk ase_20=rz20

# voldg -g ase_dg1 adddisk ase_24=rz24

# voldg -g ase_dg1 adddisk ase_26=rz26

# voldg -g ase_dg1 adddisk ase_28=rz28

Example 4-5 shows how to initialize two entire disks, with default private region parameters, create the ase_dg2 disk group, and add the initialized disks to the disk group.

Example 4-5:  Initializing LSM Disks with Private Region Parameters

# voldisksetup -i rz22 nconfig=2 nlog=2 privlen=512

# voldisksetup -i rz30 nconfig=2 nlog=2 privlen=512

# voldg init ase_dg2 ase_22=rz22

# voldg -g ase_dg2 adddisk ase_30=rz30

[Contents] [Prev. Chapter] [Prev. Section] [Next Section] [Next Chapter] [Index] [Help]

4.3.7.4    Creating and Configuring LSM Volumes for the ASE

If you want to use LSM volumes in your ASE services, you must configure them into the disk groups that you set up for the ASE. See the DIGITAL UNIX Logical Storage Manager manual for information about creating LSM volumes.

You can use the volassist command to create LSM volumes, as follows:

# volassist -g ase_dg2 make vl2 100m nmirror=2

The following command creates a striped LSM volume, v1_ase:

# volassist -g ase_dg1 make v1_ase 64m usetype=fsgen layout=stripe \
      nstripe=3 stwidth=8k ase_16 ase_18 ase_20

The following command mirrors the striped LSM volume created by the previous command:

# volassist -g ase_dg1 mirror v1_ase layout=stripe nstripe=3 \
     stwidth=8k ase_24 ase_26 ase_28

After a volume is created, you can create a UNIX file system on the volume, using the newfs command. For example:

# newfs /dev/rvol/ase_dg2/vl2 rz26

You can also use LSM volumes in AdvFS domains. The following example uses the mkfdmn command to create a new AdvFS domain on an existing LSM volume, and then uses the mkfset command to create a fileset on the domain:

# mkfdmn /dev/vol/ase_dg1/v1_ase dom_ase1
# mkfset dom_ase1 set_ase1

[Contents] [Prev. Chapter] [Prev. Section] [Next Section] [Next Chapter] [Index] [Help]

4.3.7.5    Using an Existing LSM Disk Configuration

The previous sections describe how to set up a new LSM disk configuration for an ASE service. However, you may also want to use a configuration that was used in a previous ASE service or for some other purpose. To do this, the disk groups used in the service must be imported to the machine on which you are running the asemgr utility. The disk groups cannot be imported to any other system.

To determine the system to which a disk group is imported, use the following command:

# voldg list

If the disk group is imported on the member system on which you will add the service, you can run the asemgr utility and add the service.

If the disk group is not imported on the member system on which you will add the service, you must import the disk group only to the member on which you will add the service.

Use the following command syntax to deport a disk group:

voldg deport [ disk_group]

To import the disk group, perform the following tasks on the member system on which you will run the asemgr utility to add the service:

  1. Define the disks that are used in the disk group by using the following command syntax:

    voldisk define [ disk]

  2. Place on line the disks that are used in the disk group by using the following command syntax:

    voldisk online [disk...]

  3. Import the disk group by using the following command syntax:

    voldg import [disk_group]

  4. Restart the volumes by using the following command syntax:

    volrecover -sb [disk_group]

After the disk group is imported, you can run the asemgr utility and add the service.

[Contents] [Prev. Chapter] [Prev. Section] [Next Section] [Next Chapter] [Index] [Help]

4.3.7.6    Specifying LSM Volumes in a Service

After you set up the LSM disk configuration, you can use the asemgr utility to set up an NFS, disk, or tape service that uses an LSM volume. You can specify the following information about an LSM volume:

When you specify an LSM, the asemgr utility displays the disk partitions that comprise the volume.

Example 4-6 shows how to specify an LSM volume in a disk service.

Example 4-6:  Specifying LSM Volumes in a Disk Service

                 Specifying Disk Information

Enter one or more device special files, AdvFS filesets, or LSM
volumes to define the disk storage for this service.

For example:        Device special file:      /dev/rz3c
                    AdvFS fileset:            domain1#set1
                    LSM volume:               /dev/vol/dg1/vol01

To end the list, press the Return key at the prompt.

Enter a device special file, an AdvFS fileset, or an LSM volume as
storage for this service (press 'Return' to end): /dev/vol/ase_dg2/vl2

                  Mount Point

The mount point is the directory on which to mount /dev/vol/ase_dg2/vl2.
If you do not want it mounted, enter "NONE."

Enter the mount point or NONE: NONE

Following is a list of device(s) and pubpath(s) for disk group ase_dg2:

        DEVICE  PUBPATH

        rz22c   /dev/rz22c
        rz30c   /dev/rz30c

Is this correct (y/n) [y]: y

See Example 4-3 for an example of specifying an LSM volume that uses an AdvFS fileset.

Note

When an ASE service using LSM volumes is relocated while a volume is open, LSM displays the following message on the console:

     volklog_dgfree:
       Can't free kernel logging area for vol_reset_kernel of group dg4

This message indicates that the LSM kernel log for the diskgroup was not cleared before the diskgroup was deported. When the diskgroup is reimported, the log area will be cleared. For this reason, you can safely ignore the console message.

[Contents] [Prev. Chapter] [Prev. Section] [Next Section] [Next Chapter] [Index] [Help]

4.3.7.7    Using LSM Mirroring in the ASE

You can use mirrored LSM volumes in your ASE services. If a disk that is included in a plex that is part of an LSM mirrored volume goes off line, the data in the volume is still available, as long as one complete plex of the volume remains on line. Thus, the service that uses the mirrored volume remains available if a disk fails.

When the failed disk is replaced, you can reincorporate the device into the ASE service by resynchronizing the mirrored volume outside of the ASE, and then rereserving the devices using the asemgr utility's Advanced Utilities menu.

In rare cases, if any disk that is part of an LSM disk group is not accessible when the service is started, you might access stale data or a stale LSM configuration. This can occur if two member systems access different subsets of the disks in the disk group.

By default, the TruCluster software prevents accessing stale data by disabling the ASE_PARTIAL_MIRRORING run-time configuration variable that allows you to start an unsynchronized mirrored volume.

If you use LSM mirroring in a service and the ASE_PARTIAL_MIRRORING run-time variable is disabled (the default behavior), the service can start only if the member system can access all of the disks in the disk groups used in the mirroring. This ensures that the service cannot be started with obsolete LSM configuration information, which guarantees data integrity but limits service availability.

If you use the default behavior, when you use the asemgr utility to set up a service that uses an LSM mirrored volume, choose an ASP policy that will not automatically relocate the service to a more highly favored member if the system becomes available. If a plex fails, the service remains available on the member. Otherwise, if the plex fails and the service tries to relocate, the service will not start.

For maximum service availability, you can set the ASE_PARTIAL_MIRRORING variable to on by invoking the following command on all the members in the ASE:

# rcmgr set ASE_PARTIAL_MIRRORING on

If you do this, a service that uses LSM mirroring can start when only one plex of the data is available, but there is a remote possibility that the service will use obsolete LSM configuration information.

If the ASE_PARTIAL_MIRRORING variable is disabled, you can force a service to start by enabling the ASE_PARTIAL_MIRRORING variable, manually restarting the service, and then disabling the variable. Do this if you know that a disk has failed and you want to relocate the service.

[Contents] [Prev. Chapter] [Prev. Section] [Next Section] [Next Chapter] [Index] [Help]

4.3.7.8    Understanding the LSM Pseudodevice

The TruCluster software uses a pseudodevice if a service includes both UFS and LSM. When the TruCluster software mounts a UNIX file system on an LSM volume, it maps the volume to an ASE pseudodevice (/dev/ase_nnn) and then mounts the pseudodevice. For example, if you have an NFS service using the /dev/vol/dg1/vol01 volume, the following information is displayed when you invoke the mountcommand:

# mount

.
.
.
/dev/ase_001 on /usr/var/ase/mnt/ase18/usr/ase18 type ufs (rw)

A pseudodevice is used because when LSM volumes move from one member to another, the major and minor numbers for the volume may change. Because NFS uses the major and minor numbers for its file handle, a change in these numbers means that the file handle may correspond to different file systems on each member. ASE guarantees consistent file handles by using a pseudodevice.

[Contents] [Prev. Chapter] [Prev. Section] [Next Section] [Next Chapter] [Index] [Help]

4.4    Installing an Application to Fail Over

If your service uses an application that you want to fail over, you must install the application before you set up the service. For example, when you set up an NFS mail service, you must set up the mail hubs on the member systems before you use the asemgr utility to add the service to the ASE. In addition, before you set up a disk service that makes a database program highly available, you must install the database program on all the members.

Only certain types of applications can be made highly available with an ASE service. The application must have the following characteristics:

When you install the application that you want to fail over, you must ensure that the application is located in the correct directory and has the correct access mode.

Section 4.5 describes how to set up the action scripts that the TruCluster software uses to fail over your application.

[Contents] [Prev. Chapter] [Prev. Section] [Next Section] [Next Chapter] [Index] [Help]

4.5    Using Action Scripts

The TruCluster software uses action scripts to fail over the services in the ASE. Action scripts break down a procedure (for example, starting a service on a member system) into a series of steps, which are executed in order. The TruCluster software makes certain that each step is successfully completed. The order of the steps ensures that any dependencies are met before the next step is performed.

There are five types of action scripts: add, delete, start, stop, and check action scripts. In addition, there are two versions of each type of action script: internal and user-defined action scripts. These action scripts are executed at specific times and perform specific tasks.

The types of action scripts are as follows:

For the five types of action scripts, there are two versions of each type of script, as follows:

[Contents] [Prev. Chapter] [Prev. Section] [Next Section] [Next Chapter] [Index] [Help]

4.5.1    Execution Sequence for Action Scripts

Internal and user-defined action scripts are executed in a specific order, depending on the task the TruCluster software is performing. The following information shows the sequence of execution for an NFS service that uses both user-defined action scripts and internal action scripts.

To add an NFS service that is configured for Advanced File System (AdvFS) to the ASE, the TruCluster software does the following:

  1. Runs the internal add action script, which performs the following tasks:

    1. Invokes the MAKEDEV command to create the device files for the devices in the service.

    2. Creates the /etc/exports.ase.service file.

  2. Runs any user-defined add action script.

To delete an NFS service from the ASE, the TruCluster software does the following:

  1. Runs any user-defined delete action script.

  2. Runs the internal delete action script, which removes the /etc/exports.ase.service file.

To start an NFS service on a member system, the TruCluster software does the following:

  1. Runs the internal start action script, which performs the following tasks:

    1. Sets up AdvFS domains, as necessary.

    2. Invokes the fsck command on any UNIX file systems used in the service.

    3. Mounts all the file systems.

    4. Adds the following line to the /etc/exports.ase file:

      .INCLUDE /etc/exports.ase.service

    5. Aliases the virtual host using the following command:

      ifconfig ln0 alias hostname

    6. Starts NFS locking by invoking the statd and lockd daemons.

  2. Runs any user-defined start action script.

To stop an NFS service on a member system, the TruCluster software does the following:

  1. Runs any user-defined stop action script.

  2. Runs the internal stop action script, which performs the following tasks:

    1. Stops NFS locking by stopping the statd and lockd daemons.

    2. Removes the virtual host alias by using the following command:

      ifconfig ln0 -alias hostname command.

    3. Removes the .INCLUDE /etc/exports.ase.service line from the /etc/exports.ase file.

    4. Unmounts all the file systems.

    5. Unconfigures the domain.

[Contents] [Prev. Chapter] [Prev. Section] [Next Section] [Next Chapter] [Index] [Help]

4.5.2    Exit Codes for Action Scripts

When the TruCluster software invokes an action script, it usually considers a 0 (zero) exit code as a success. An exit code of 1 indicates that the script failed. The exception is the check action script, which exits with an exit code that is between 100 and 200 to indicate that the service is running, and an exit code that is less than 100 to indicate that the service is not running. A stop script can produce the exit code 99, which indicates that the service could not be stopped because the service was busy.

All standard output and standard error output from your script goes to the ASE logger daemon, if running, or to the syslog daemon. If an internal action script exits with a 0 (zero), it is logged as an informational message; if a user-defined action script exits with a zero, it is a notice. If either type of script exits with an exit code other than zero, the messages are logged as errors.

[Contents] [Prev. Chapter] [Prev. Section] [Next Section] [Next Chapter] [Index] [Help]

4.5.3    Specifying User-Defined Action Scripts for a Service

You use the asemgr utility to specify any user-defined action scripts when you add or modify a service. If you want to fail over an application, at a minimum, you must create start and stop action scripts to start and stop the application. If you need to set up the system environment in order for the service to run, then you also must create add and delete action scripts. For user-defined services, it is recommended that you create a check action script, so the TruCluster software can determine if the service is running.

There are three ways to specify a user-defined action script for a service:

In addition to specifying the user-defined action scripts, the asemgr utility allows you to specify the following script information:

Example 4-7 shows how to specify the pathname of an action script at the asemgr prompt. The script must already be installed on your system.

Example 4-7:  Specifying Your Own Action Scripts

Enter the full pathname of your start action script or "default"
for the default script (x to exit): /usr/sbin/dbase_account

Enter the argument list for the start action script

(x to exit, NONE for none): start

Enter the timeout in seconds for the start action script [60]: [Return]

Example 4-8 shows how to specify and edit a default skeleton script that the TruCluster software provides.

Example 4-8:  Editing Default Action Scripts

Enter the full pathname of the start action script or "default"
(for the default script (x to exit): default

Enter the argument list for the start action script
(x to exit NONE for none) [prophecy_1]: NONE

Enter the timeout in seconds for the start action script [60]:80

Modifying the start action script for `prophecy_1`:

    f)  Replace the start action script
    e)  Edit the start action script
    g)  Modify the start action script arguments [none]
    t)  Modify the start action script timeout [80]
    r)  Remove the start action script
    x)  Exit - done with changes

Enter your choice [x]: e

PATH=/sbin:/usr/sbin:/usr/bin
export PATH
ASETMPDIR=/var/ase/tmp

if [ $# -gt 0 ]; then
        svcName=$1
else
        svcName=
fi

# Start prophecy_1 database program:
su - prophecy -c dbstart
exit 0
:wq

Action scripts can test the ASE_STATE variable to determine the state of a service. If the ASE_STATE variable is STARTING, this indicates that the service's stop action script was invoked because of a system reboot. If the ASE_STATE variable is RUNNING, this indicates that the service's stop action script was invoked because the service was modified, deleted, placed off line, or relocated.

A stop action script can test the value of the ASE_STATE variable and, if the value is STARTING, perform some tasks to ensure that erroneous processes are not running.

You may want to save the user-defined action scripts in a file that you can access from outside of the ASE. For example, you may want to archive the files, or you may want to test the scripts outside of the ASE. To do this, use the asemgr utility to edit the scripts. Then, while in the editor, use a command similar to the following vi editor command to copy the script to a file:

:w /tmp/foo

[Contents] [Prev. Chapter] [Prev. Section] [Next Chapter] [Index] [Help]

4.5.4    Debugging User-Defined Scripts

Always test your script outside of the ASE to ensure that it works. When you are ready to set up a service that uses the script, first set the ASE logging level to informational, so that all messages are logged. After you set up the service to use the scripts, examine the syslog daemon logs for any problems. If you have added any debug echoes to the script, they will show up in the log file.

If your stop script fails when you use the asemgr utility to modify a service or place it off line, the TruCluster software places the service off line and prompts you to ensure that the service has stopped. If this occurs because of an error in your stop script, use the asemgr utility to edit the script and correct the problem, then place the service back on line.

If a stop service action fails to stop a service, the asemgr utility provides you with a number of opportunities to fix the problem. See Section 10.3 for information.

[Contents] [Prev. Chapter] [Prev. Section] [Next Chapter] [Index] [Help]
